Model
|
Distance from Sludge Discharge Outlet to Ground (mm)
|
Overall Dimensions
|
Net Weight (kg)
|
||
|
Length (L)
|
Width (W)
|
Height (H)
|
|||
|
QDLX - 131
|
250
|
2000
|
785
|
1040
|
250
|
|
QDLX - 132
|
250
|
2000
|
950
|
1040
|
450
|
|
QDLX - 201
|
350
|
2510
|
900
|
1300
|
420
|
|
QDLX - 202
|
350
|
2560
|
1050
|
1300
|
550
|
|
QDLX - 301
|
530
|
3330
|
1005
|
1760
|
900
|
|
QDLX - 302
|
530
|
3530
|
1290
|
1760
|
1350
|
|
QDLX - 303
|
530
|
3680
|
1620
|
1760
|
1900
|
|
QDLX - 351
|
570
|
4005
|
1100
|
2130
|
1100
|
|
QDLX - 352
|
570
|
4390
|
1650
|
2130
|
2100
|
|
QDLX - 353
|
570
|
4520
|
1980
|
2130
|
3100
|
|
QDLX - 354
|
570
|
4750
|
2715
|
2130
|
4100
|
|
QDLX - 402
|
660
|
4960
|
1760
|
2100
|
3500
|
|
QDLX - 403
|
660
|
5010
|
2535
|
2100
|
5500
|
|
QDLX - 404
|
660
|
5160
|
3160
|
2100
|
7000
|
|
Model
|
DS Solid Load (kg/h)
|
Flow Load (m³/h)
|
|||||
|
Low Concentration
|
High Concentration
|
2000 mg/L
|
10000 mg/L
|
20000 mg/L
|
30000 mg/L
|
50000 mg/L
|
|
|
QDLX-131
|
~4
|
~26
|
~2.0
|
~0.6
|
~0.5
|
~0.87
|
~0.4
|
|
QDLX-132
|
~8
|
~52
|
~4.0
|
~1.2
|
~1.0
|
~1.73
|
~0.8
|
|
QDLX-201
|
~8
|
~52
|
~4.0
|
~1.2
|
~1.0
|
~1.73
|
~0.8
|
|
QDLX-202
|
~16
|
~104
|
~8.0
|
~2.4
|
~2.0
|
~3.47
|
~1.6
|
|
QDLX-301
|
~20
|
~130
|
~10
|
~3.0
|
~2.5
|
~4.33
|
~2.0
|
|
QDLX-302
|
~40
|
~260
|
~20
|
~6.0
|
~5.0
|
~8.67
|
~4.0
|
|
QDLX-303
|
~60
|
~390
|
~30
|
~9.0
|
~7.5
|
~13
|
~6.0
|
|
QDLX-351
|
~40
|
~260
|
~20
|
~6.0
|
~5.0
|
~8.67
|
~4.0
|
|
QDLX-352
|
~80
|
~520
|
~40
|
~12
|
~10
|
~17.3
|
~8.0
|
|
QDLX-353
|
~120
|
~780
|
~60
|
~18
|
~15
|
~26
|
~12
|
|
QDLX-354
|
~160
|
~1040
|
~80
|
~24
|
~20
|
~34.68
|
~16
|
|
QDLX-402
|
~135
|
~884
|
~67.5
|
~20
|
~17
|
~29.5
|
~13.6
|
|
QDLX-403
|
~200
|
~1326
|
~100
|
~30
|
~25.5
|
~44.2
|
~20.4
|
|
QDLX-404
|
~266
|
~1768
|
~133
|
~40
|
~34
|
~58.9
|
~27.2
|
Sludge treatment capacity: DS standard treatment capacity ÷ sludge concentration (DS refers to absolute dry sludge).
The above treatment capacities are reference values. The actual treatment capacity may vary depending on the sludge properties. For details, please consult us during the selection process.
Notes:
1.Depending on sludge type, polymer type and polymer dose, up to 20% additional throughput may be possible.
2.Depending on sludge type and polymer type, the typical polymer consumption for feed sludge concentration 2 - 5 g/L is
4-8kg/tonne dry solids processed, and for feed sludge concentration 5 - 50 g/L is 10-25 kg/tonne dry solids processed.
STANDARD INCLUSIONS + OPTIONS
✓= Standard Supply, O = Optional Supply, X = Not Applicable
Disclaimer: QDEVU is continuously updating and improving its products and services, please contact us for more detailed information or to confirm specifications. QDEVU takes no responsibility for any errors resulting from the use of information contained within this document .

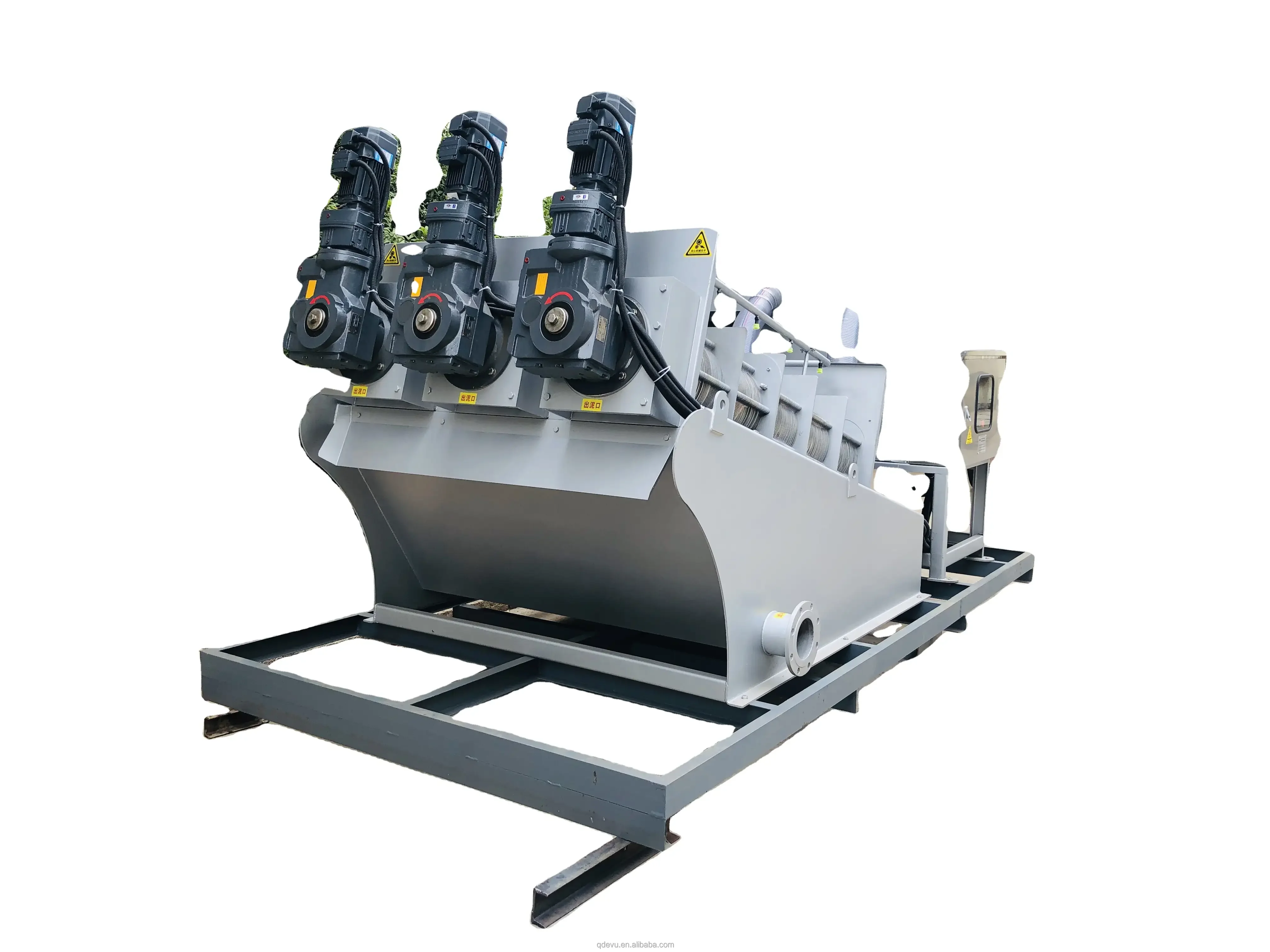

Indonesian Dyeing Wastewater Treatment Screw Sludge Dewatering Machine and Automatic PAM Dissolving & Dosing System

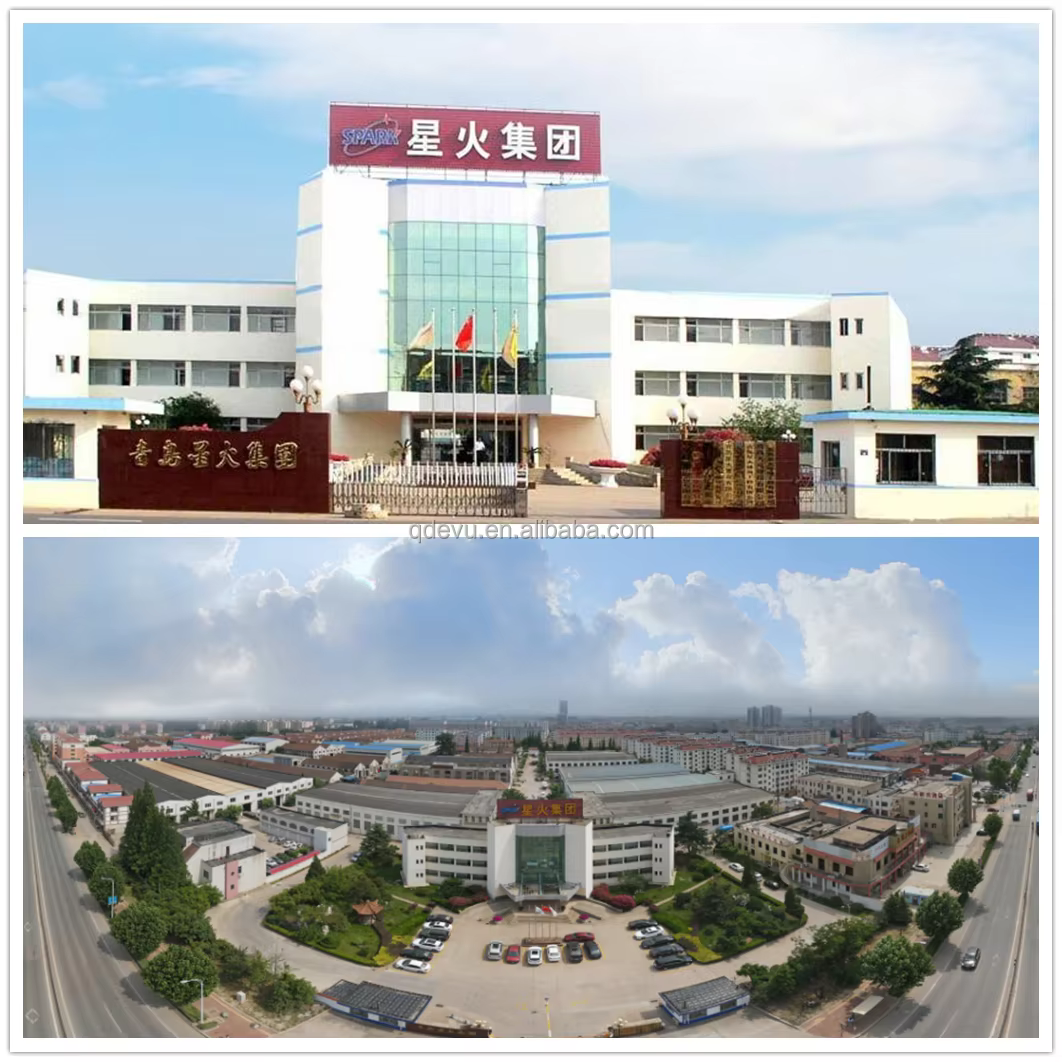

Qingdao EVU Environmental and Engineering Equipment Co., Ltd. is of scientific research design, equipment manufacture, installation, commissioning and training services as one integrated technology-oriented enterprises in water treatment industry. It is holding by Qingdao Spark Textile Machine Co., Ltd which is a national Spark Industrial Group, national second-level and large-scale comprehensive enterprise group in China. We use the advanced technology and equipment over the world. Our main productions: Integration Sewage Wastewater Treatment Plant, Printing and Dyeing Wastewater Treatment Equipment, Car Washing Wastewater Treatment Equipment, MBR Wastewater Treatment Equipment, Cutting Fluid Sewage Treatment Equipment, Pickling Phosphate Wastewater Treatment Plant, Electroplating Wastewater Treatment Equipment, Sea water desalination system, CAF, DAF , Screw Sludge Dewatering Machine, automatic soluble drug dosing machine, Ro reverse osmosis pure water machine, mud scraper, sediment scraper, mechanical grill, the micro bubble generator, chlorine dioxide generator, USAB anaerobic reactor, membrane bioreactor, mechanical filter, water purifier, the catering industry oil-water separator, micro porous aerator, biological stuffing, aluminum polychlorid, polyscrylamide, decolorizing agent, CLO2 liquid disinfectant, activated carbon, manganese filtration and so on series products. We based on “technological development, pollution remediation, wholeheartedly for customer services". We hope to cooperate with all customers from all over the world and build a better world together.
1. Who are we?
We are based in Shandong, China, start from 1999,sell to South America(35.00%),Domestic Market(15.00%),South Asia(13.00%),Oceania(7.00%),Southern Europe(7.00%),Southeast Asia(5.00%),Africa(5.00%),Western Europe(5.00%),North America(5.00%),Eastern Asia(3.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?

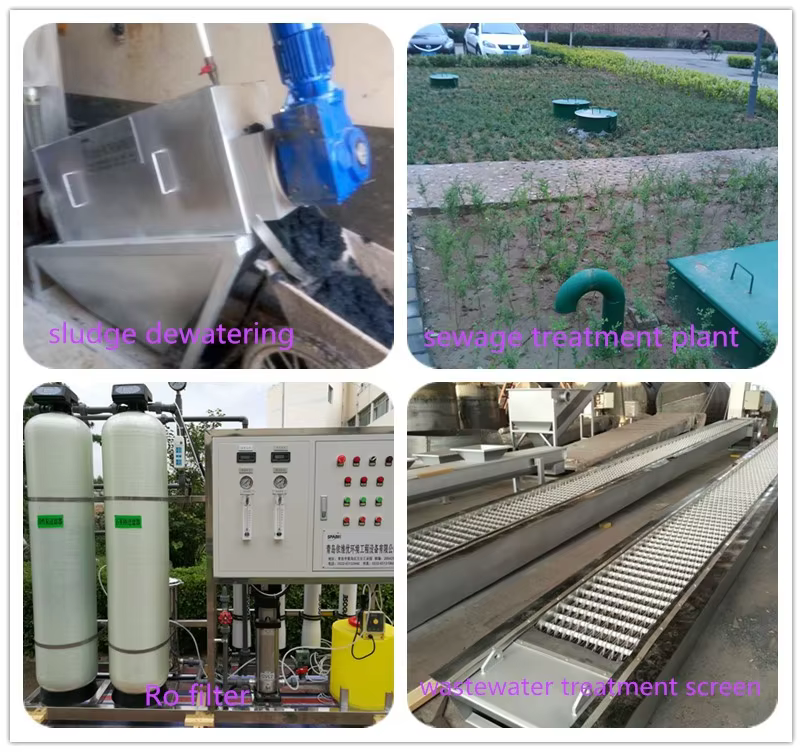

Wastewater treatment plant,RO Device,MBR Plant,Dissolved Air Flotation Machine,Sludge scraper
