WWTP AO+MBBR+MBR Integrated System: 50% Smaller Footprint, 40% Lower OPEX

Product Description

Industrial Package Containerized Integrated Wastewater Treatment Plant with Anaerobic Digestion Biogas Production manufacture

QDEVU® Q-STP is a critical facility designed to effectively treat wastewater generated from various sources, including the residential,commercial and industrial. The main goal of Q-STP is to remove pollutants (SS, COD, BOD, Oil&Grease, etc.) and impurities fromwastewater, ensuring that the wastewater is safely discharged into the environment or reused for non-potable purposes such as irrigation and industrial processing.

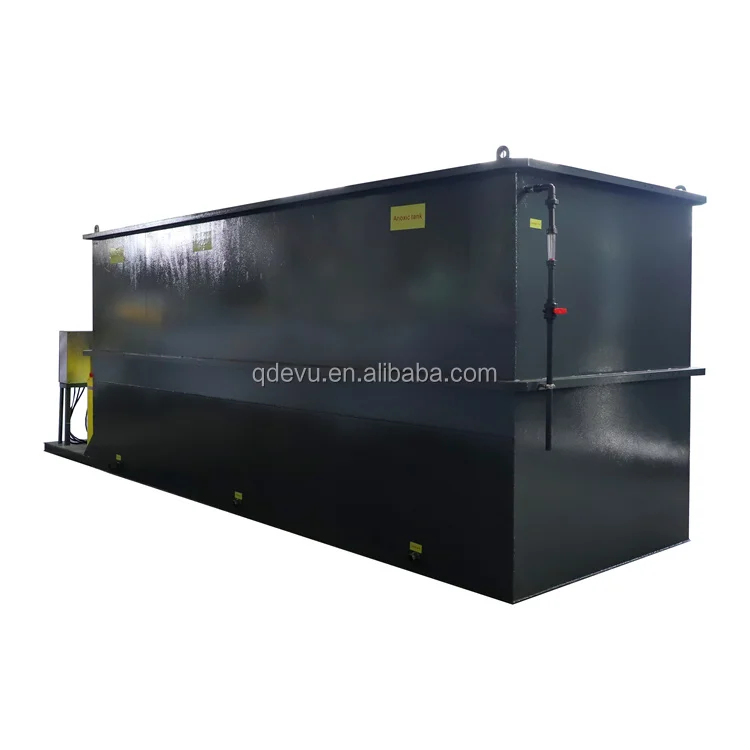

Q-STP Packaged Sewage Treatment Plant is made of Q235 carbon steel or stainless steel and coated with 3 layers of epoxy resin to enhance anti-corrosion protection. The equipment can be placed underground or ground according to site conditions.On site is required a concrete foundation and external pipes from the septic tank to the STP's inlet. A level gauge and sewage pump will do the rest. The outlet can be connected to the municipal sewage pipelines. The equipment room contains all pumps, instruments, valves,which is used to monitor the operation of the STP.The effluent can also be stored in on-site water storage tanks for irrigation or floor cleaning, saving costs. Q-STP is customized in different sizes depending on your needs.

Q-STP is modular type, which means it can be easily combined together as capacity increased.As Q-STP is in a corrosion-resistant steel container that is approximately the size of a standard 20 or 40 foot container, it can be easily relocated and installed in most locations.

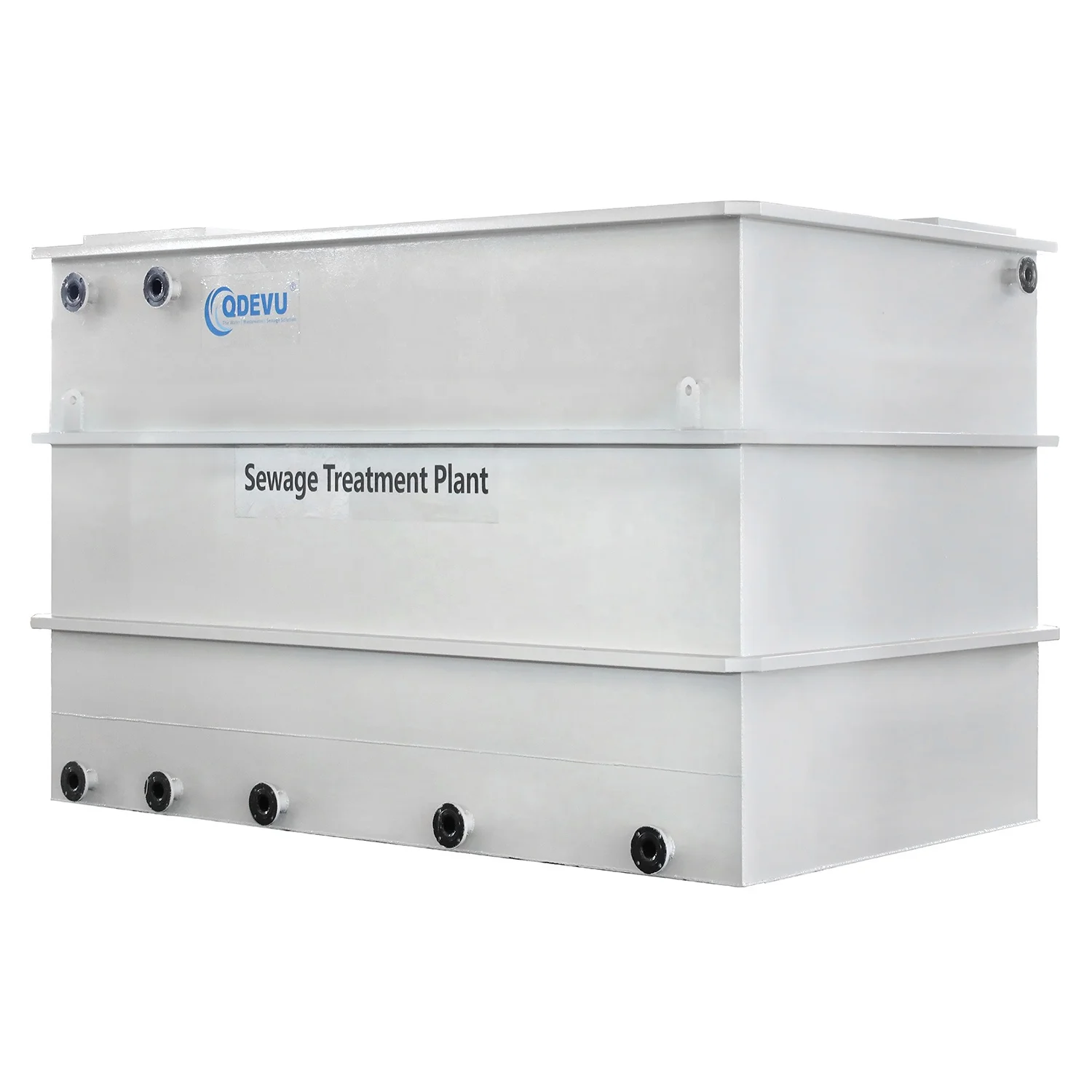

Customized Appearance

Industrial Package Containerized Integrated Wastewater Treatment Plant with Anaerobic Digestion Biogas Production factory

Internal Operation Room

Model No. & Specifications

Product Model	Capacity	Dimension
Q-STP5	5m3/day	4.02.22.2M
Q-STP10	10m3/day	4.52.22.2M
Q-STP20	20m3/day	5.02.22.2M
Q-STP50	50m3/day	8.52.22.4M
Q-STP100	100m3/day	11.52.22.4M
Q-STP200	200m3/day	11.54.52.4M
Q-STP300	300m3/day	11.57.02.4M

Equipment Working Process

Key Technologies for Sewage Treatment Plant

Biological Treatment
Biological treatment exploits the natural ability of microorganisms to degrade organic contaminants.

Anoix and Oxic(AO)
Aerobic processes use oxygen to support microorganisms in breaking down organic matter. Anaerobic processes operate without oxygen and produce biogas as a by-product. Both processes play a vital role in wastewater treatment.

Moving Bed Bioreactor (MBBR)
Moving bed bioreactor technology uses a suspended plastic medium as a substrate for biofilm growth. It provides a large attachment surface area for microorganisms to effectively decompose organic pollutants.

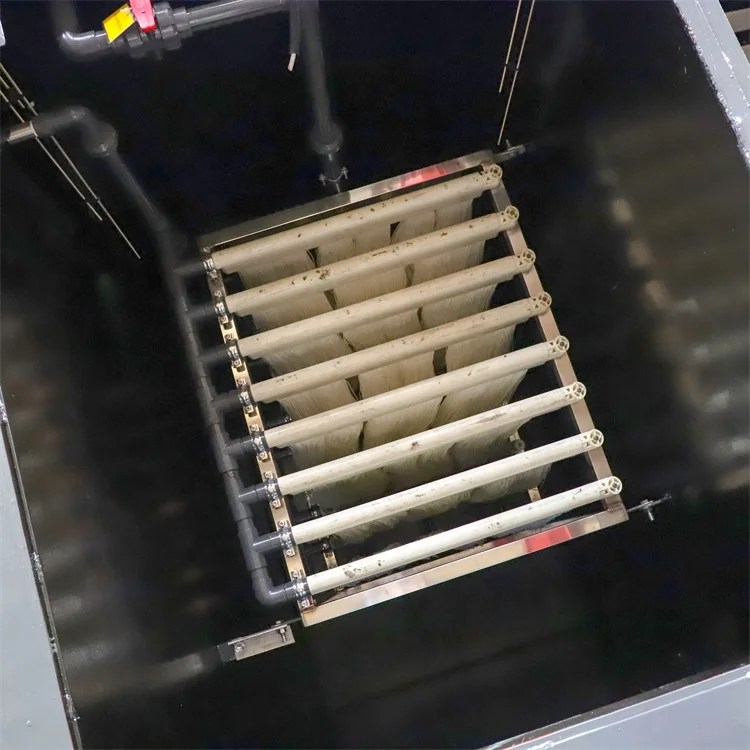

Membrane Bioreactor (MBR)
Membrane bioreactor technology combines biological treatment with membrane filtration technology to achieve excellent effluent quality. It effectively removes suspended solids, pathogens and organic matter, and the treated water is suitable for reuse.

Application Industry

Q-STP for Hotels and Resorts
Waste water treatment is critical to the hospitality industry. Sewage treatment plants (Q-STP) designed for hotels and resorts utilize advanced treatment processes such as MBR, MBBR, etc. to ensure effective removal of pollutants from wastewater. Q-STP recycle the treated water for various non-potable uses within the premises, contributing to sustainable water management.

Q-STP for Restaurants and Bars
Restaurant Wastewater Treatment Facilities Effective treatment of wastewater is critical to the sanitation and environmental standards of restaurants. QDEVU® Q-STP series Sewage treatment plant use aerobic and anaerobic processes followed by biological treatment to purify wastewater and minimize environmental impact.

Q-STP for Hospitals and Healthcare Facilities
Hospitals generate a significant amount of wastewater that requires careful treatment due to potential biohazards. Q-STP in healthcare facilities utilize specialized technologies like MBR and SBR to ensure the safe disposal of treated wastewater,contributing to infection control and environmental protection.

Q-STP for Residential Complexes
Sewage treatment is vital in residential areas to prevent pollution and safeguard public health.STP for residential complexes are often compact and integrated, ensuring efficient treatment and the potential for water reuse.Technologies like MBBR and SBR are employed to manage the varying wastewater loads.

Q-STP for Commercial Complexes and Industrial Area
Commercial and industrial areas produce diverse and often complex wastewater. State-of-the-art STPs with compact designs meet the specific needs of these industries, and biological water treatment methods such as MBR and SBR ensure complete removal of pollutants and compliance with environmental regulations.

Q-STP for Municipal Projects and Public Area
STP serving municipalities are designed to handle the wastewater generated by entire communities.These facilities combine various treatment processes to efficiently treat large volumes of wastewater.Water recycling and reuse are often integrated into the process,contributing to sustainable water management practices

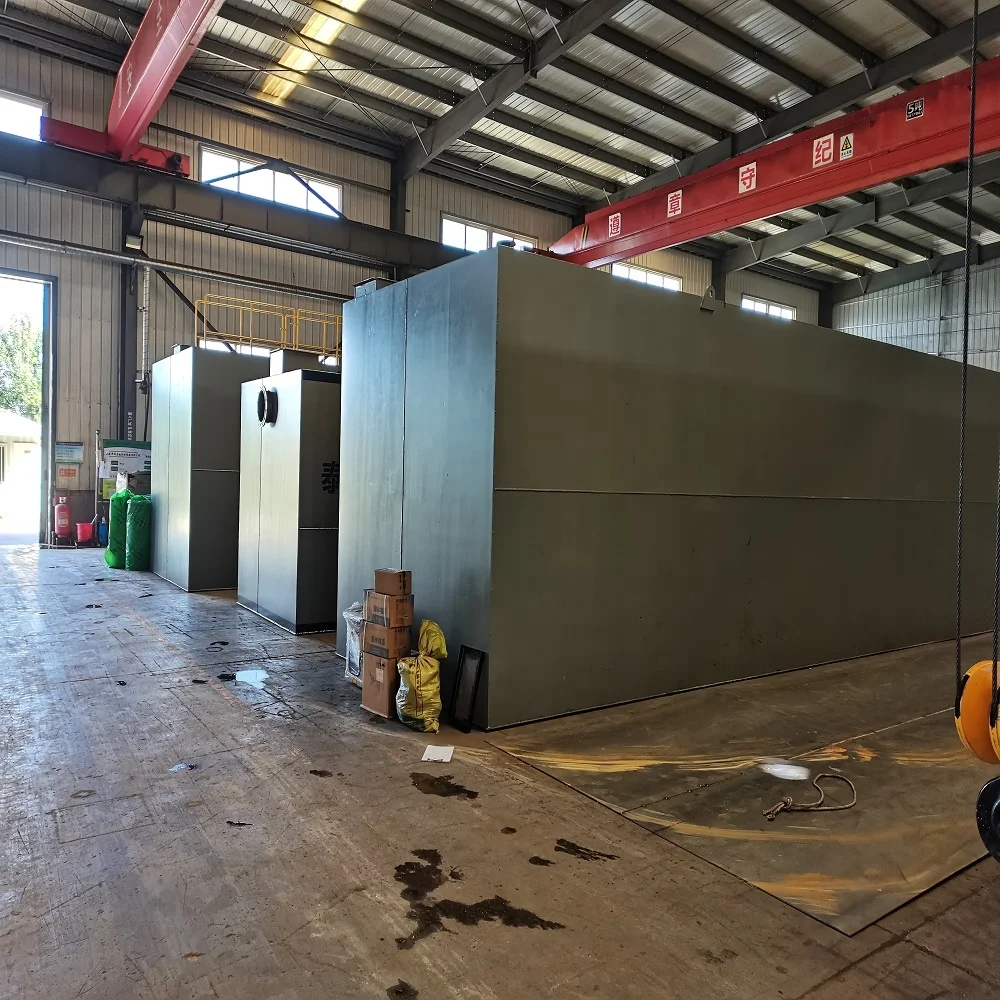

Packing & Delivery

wwtp ao mbbr mbr integrated 163-5

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

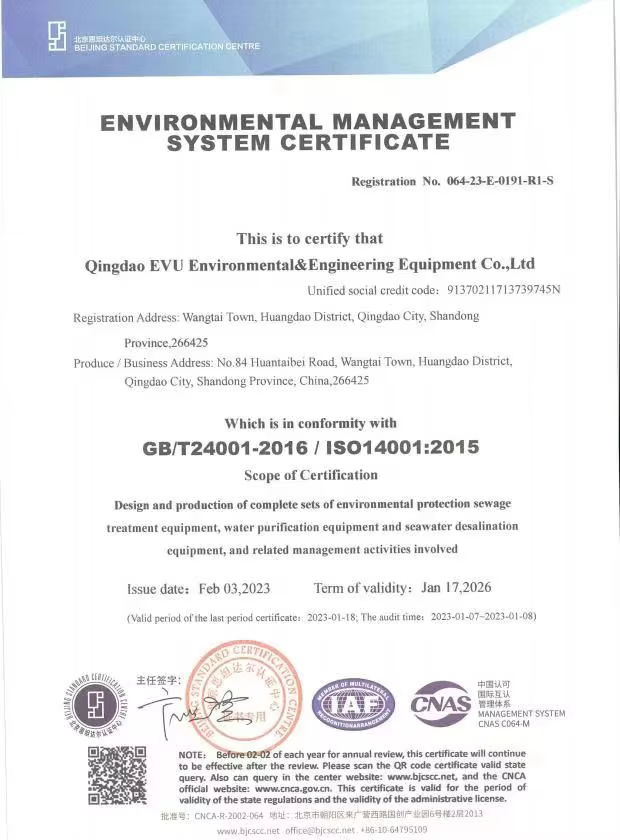

Company Profile

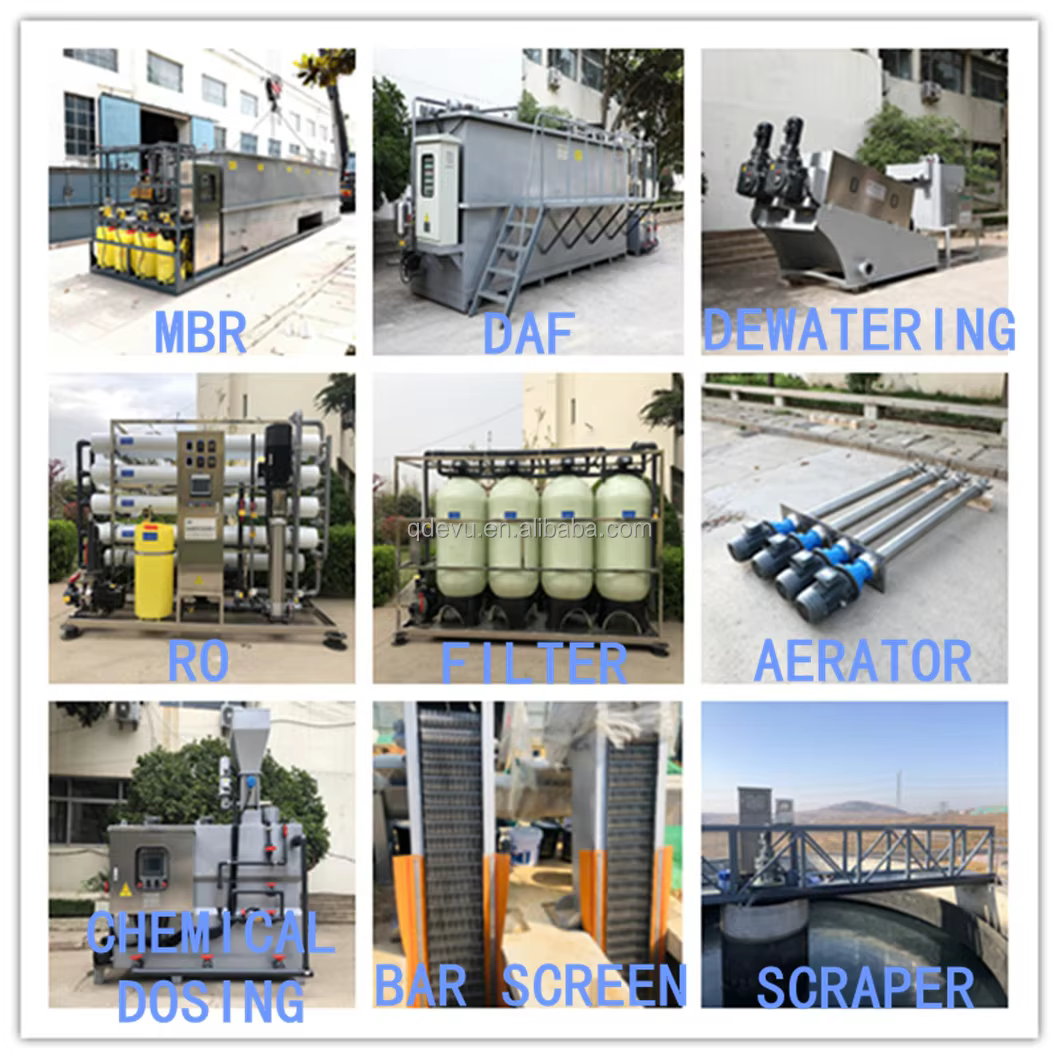

Qingdao EVU Environmental Protection Equipment Co., Ltd. is of scientific research design, equipment manufacture, installation, commissioning and training services as one integrated technology-oriented enterprises in water treatment industry. It is holding by Qingdao Spark Textile Machine Co., Ltd which is a national Spark Industrial Group, national second-level and large-scale comprehensive enterprise group in China. We use the advanced technology and equipment over the world. Our main production and operation include: the integration of sewage wastewater treatment equipment, printing and dyeing wastewater treatment equipment, car washing wastewater treatment equipment, the MBR wastewater treatment equipment, cutting fluid sewage treatment equipment, pickling phosphate wastewater treatment equipment, electroplating wastewater treatment equipment, sea water desalting equipment, YHQF-I, SLQF-I, automatic dosing machine, Ro reverse osmosis pure water machine, mud scraper, sediment scraper, mechanical grill, the micro bubble generator, chlorine dioxide generator, USAB anaerobic reactor, membrane bioreactor, mechanical filter, water purifier, the catering industry oil-water separator, micro porous aerator, biological stuffing, aluminum polychlorid, polyacrylamide, decolorizing agent, CLO2 liquid disinfectant, activated carbon, manganese filtration and so on series products. We based on "technological development, pollution remediation, wholeheartedly for customer services". We hope to cooperate with all customers from all over the world and build a better world together.

FAQ

Q: Where is your factory?
A: Our factory is located in Qingdao, Shandong. We can ship to all ports.

Q: How to buy your products?
A:Please provide application location, water source, daily water treatment, main material, power,etc.

Q: Do you offer OEM&ODM services?
A:Yes. We can customize the LOGO and products according to your needs.

Q: How long is the delivery time?
A: It depends on the number of orders. Generally, the delivery time is 4 to 6 weeks.

Q: How to pack the products?
A: We use standard package. lf you have special package requirements, we will packas required, but the fees will be paid by customers.

Q: How long is your warranty?
A: One year after the arrival of the goods.

Q: How to install the device once it reaches the destination?
A: We will provide you with remote video guidance. If necessary, we will send technicians to help you. Visa fee, airfare, accommodation, salary will be paid by customers.
