High Efficiency Lamella Clarifier Settling Tank for Industrial Wastewater Treatment, ISO Certified

Product Description

High Efficiency Lamella Clarifier Settling Tank for Waste Water Treatment factory

QDEVU Inclined Sloping Plate Settler Lamella Clarifier

Description
Lamella clarifier or inclined plate settler (IPS) is a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.

Application

Primary clarification of wastewater streams
Backwash water recovery
Industrial water treatment systems
Potable water treatment systems
River water abstraction clarification
Wash water recovery and recirculation systems
Wet scrubber and slaking effluent treatment

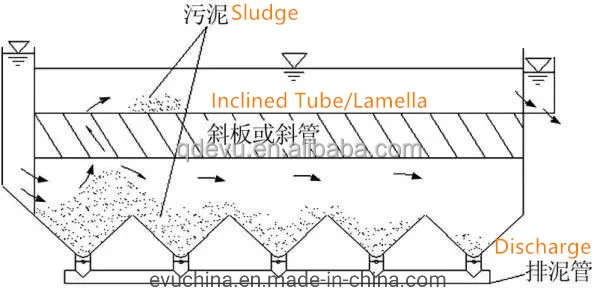

Working Principle

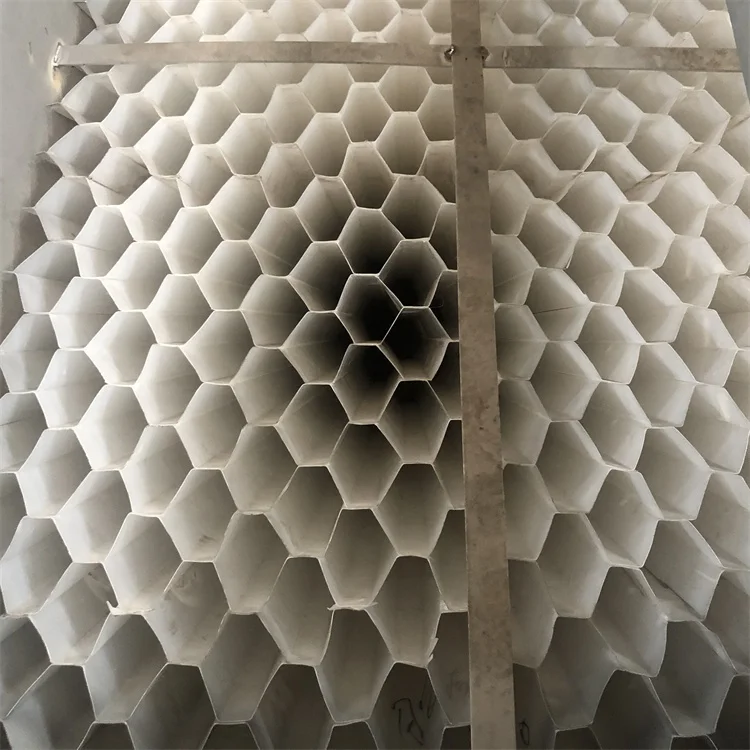

According to the principle of shallow pond, the effective volume of sedimentation tank is certain. The larger the area of the sedimentation tank is, the higher the sedimentation efficiency of the sedimentation tank is, which has nothing to do with the sedimentation time. The shallower the sink, the shorter the settling time. The sedimentation area of the inclined tube packing sedimentation tank is separated into thin layers by a series of parallel inclined plates or inclined tubes, which embodies the principle of shallow pool.

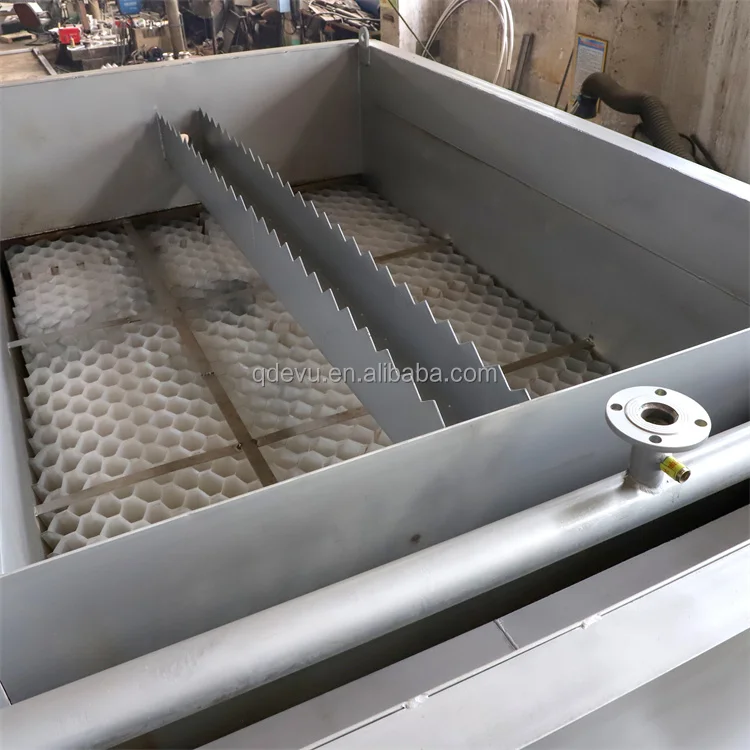

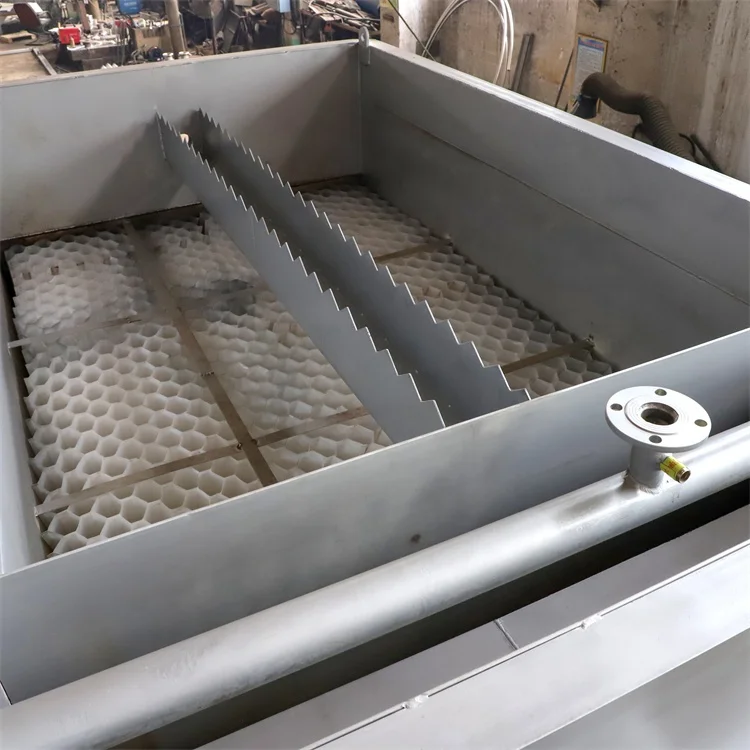

High Efficiency Lamella Clarifier Settling Tank for Waste Water Treatment details

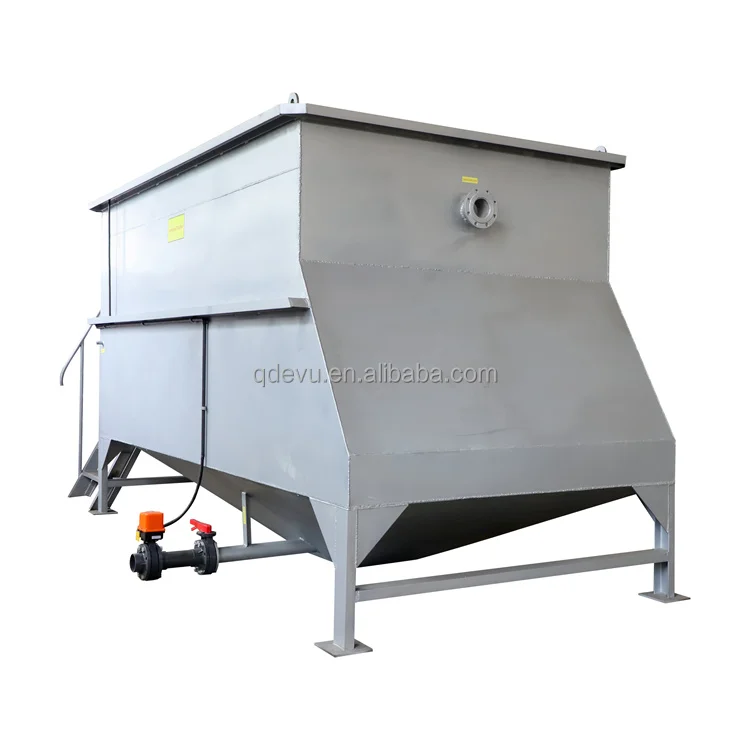

High Efficiency Lamella Clarifier Settling Tank for Waste Water Treatment manufacture

Lamella clarifiers can be used in a range of industries including mining and metal finishing,as well as used to treat groundwater industrial process water and backwash from sand filters.Lamella clarifiers are ideal for applications where the solids loading is variable and solids sizing is fine and are more common than conventional clarifiers at many industrial sites due to their smaller footprint.

• Simple structure,without wearing parts,wear well,decrease maintenance
• Steady operation,easy operation
• Small power,save energy
• Small occupy area, low investment, high efficient
• Short retention time, high sediment efficiency, no sludge backflow.

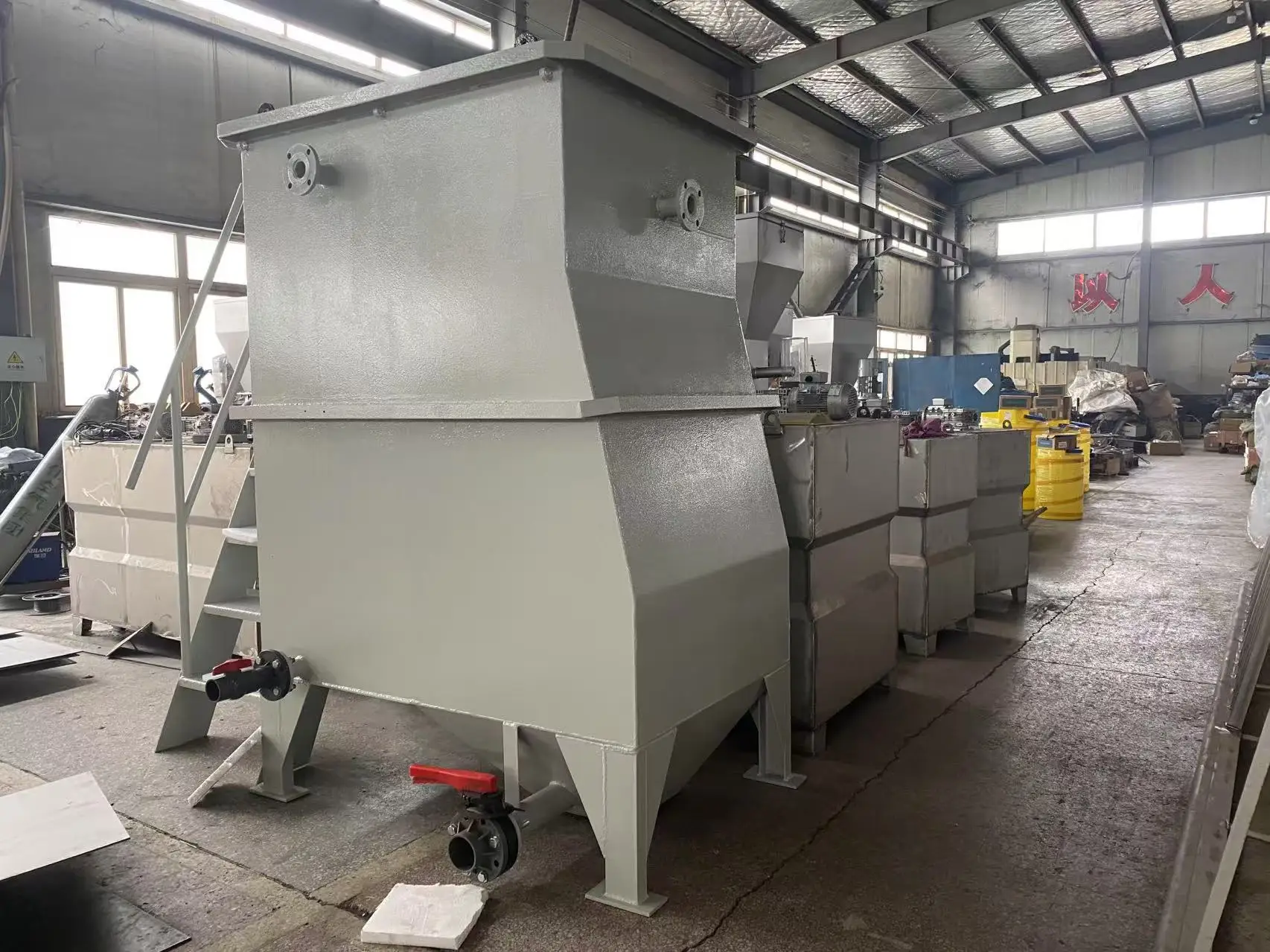

High Efficiency Lamella Clarifier Settling Tank for Waste Water Treatment supplier

The inclined plate sedimentation tank adopts the principle of "shallow layer precipitation" to shorten the sedimentation distance of particles, thus shortening the sedimentation time, and increasing the sedimentation area of the sedimentation tank, thus improving the treatment efficiency.

Product Paramenters

item	value
Lamella clarifiers can handle a maximum feed water concentration of 10000 mg/L of grease and 3000 mg/L of solids.
Expected separation efficiencies for a typical unit are:	90-99% removal of free oils and greases under standard operation conditions
	20-40% removal of emulsified oils and greases with no chemical amendment
	50-99% removal with the addition of chemical agent(s)
Material	Carbon steel
Productivity	1000L/Hour
Weight (KG)	830kg
Product name	WasteWater Treatment Lamella Clarifier
Application	Waste water treatment equipment
Function	Setting tank
Usage	waste water treatment
Keywords	Wastewater Sedimentation Tank Lamella Clarifier Inclined Tube Settler Clarifier Sewage Treatment Plant

Company Profile

Qingdao EVU Environmental and Engineering Equipment Co., Ltd. is established in 1999,it is one of scientific research design,
equipment manufacture, installation, commissioning and training services as one integrated technology-oriented enterprises in
water treatment industry. It is holding by Qingdao Spark Textile Machine Co., Ltd which is a national Spark Industrial Group,
national second-level and large-scale comprehensive enterprise group in China.

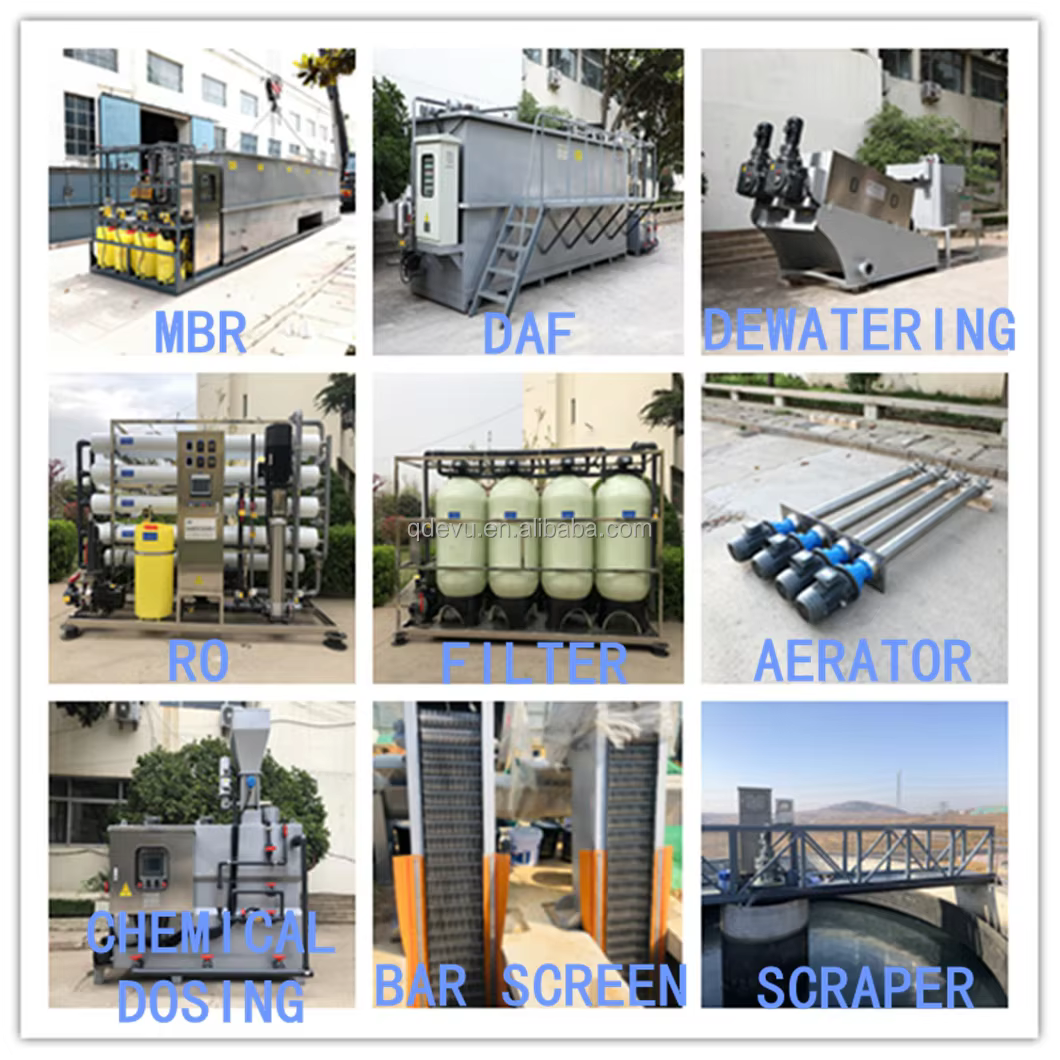

Our main productions: Integrated Sewage Treatment Equipment, MBR Sewage Treatment Equipment(MBR), Electro coagulation Sewage
Treatment Plant(EC Plant), Reverse Osmosis Filtration Equipment(RO System), Dissolved Air Flotation Machine(DAF), Cavitation air
Flotation Machine (CAF), Aerator, Screw Press Sludge Dewatering Machine, Automatic Chemical Dissolved and Dosing machine, Sludge Scraper, Slag Scraper, The micro bubble generator, USAB anaerobic reactor, Bar Screen, Sand Filter and so on series products.

sloped plate solid liquid separation equipment390-5

We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia, Uruguay, Turkey, Russia, USA, Mexico,
Brazil, Singapore, India, Egypt, Thailand, Middle east and South Africa.

FAQ

Q1:Are you a factory or trading company?
A1:We are a real manufacturer who can offer you both the most competitive price and top quality products.

Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Qingdao City Shandong Province, All our clients, from home or abroad, are warmly welcome to visit us!

Q3:Can you put my company brand (logo) on the products?
A3:Yes,we support OEM/ODM service,the customize process as follows:
1.Customers put forward personalized customization requirements.
2.Our engineer draw the design draft.
3.Customer confirm the design draft.
4.Factory start to produce shipment.

Q4:How to select right model?
A4:You can tell us what you need, and we can help you choose the Model.Basic informations as follows:
Wastewater type : Industry wastewater, Domestic wastewater, food wastewater or others)
Capacity:m³/Day or m³/Hour?
Raw water quality: SS, Oil & Grease &Fat & FOG, PH,BOD,COD content?
Output water quality standard,for discharge or reuse?
Local voltage and frequency?

Q5: What is your MOQ?
A5:Normally, our MOQ is 1 set.

Q6:What is the payment term ?
A6:TT and L/C are acceptable and TT will be more appreciated, 30% deposit, 70% balance payment before shipment.

Q7: We haven't imported before, can you ship the goods to our warehouse?
A7:Yes. Although our normal trade term is EXW, FOB, CIF, we can also arrange logistics to your warehouse.

Q8:What is the delivery time of your factory?
A8:5-10 days for general series products, meanwhile, batches products & customized products would need 15-30 days based on different situations.Contact us for the exact time.

Q9:How do you ensure the quality of your products?
A9:Generally, our equipment are the most durable type in the industry, this is also the feature of the label impression for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.

Q10:How to assemble the equipment once we received it?
A10:The CAD install instruction, assembly procedure and project case will be provided.,Of course our skilled installation
engineers would go to your country and install the equipment if needed.

Q11: What is your product warranty ?After sales service?
A11:The warranty is 12 months while the lifetime is 10-15 years under good maintenance.It is durable and anti-corrosion.
Provide equipment certification and installation operating instructions.
Provide one-year spare parts.
Provide technical advisory services.
Provide guidance staff for installation and commissioning.
